How to Calibrate a Smart Board: Step-by-Step Guide for Accurate Touch Response

Smart boards have revolutionized the way we interact with digital content in classrooms, meeting rooms, and training centers. However, even the most advanced interactive displays require proper calibration to maintain accurate touch response. Whether you’re experiencing pointer drift, delayed touch recognition, or misaligned cursor positioning, proper calibration can restore your smart board’s precision and improve user experience.

This comprehensive guide walks you through the complete calibration process for smart boards, covering different technologies, troubleshooting common issues, and professional maintenance practices used by educators and IT professionals worldwide.

Understanding Smart Board Calibration Technology

Smart board calibration is the process of aligning the touch-sensitive surface with the projected or displayed image, ensuring that when you touch a specific point on the screen, the system accurately registers that exact location. This alignment is critical for precise interaction, whether you’re writing notes, navigating applications, or conducting presentations.

Modern smart boards use different touch detection technologies, each requiring specific calibration approaches:

According to data from educational technology deployments across 82+ countries, approximately 68% of smart board accuracy issues can be resolved through proper calibration, making this a fundamental maintenance skill for anyone managing interactive display technology.

When Your Smart Board Needs Calibration

Recognizing calibration issues early prevents productivity disruptions and ensures consistent performance. Watch for these common indicators that signal your smart board requires recalibration:

• Cursor offset: The pointer appears several centimeters away from where you touch the screen
• Touch delay: Noticeable lag between touching the screen and system response
• Dead zones: Certain areas of the screen don’t register touch at all
• Inconsistent accuracy: Touch precision varies across different screen regions
• Multi-touch failures: Gestures like pinch-to-zoom or two-finger scrolling don’t work properly
• Drift during use: Accuracy deteriorates progressively during extended sessions

Environmental factors can also trigger calibration needs. Temperature fluctuations, humidity changes, physical impacts, mounting adjustments, and even accumulated dust on sensors can all affect touch accuracy. In corporate environments, research shows that smart boards in high-traffic areas require calibration 40% more frequently than those in controlled settings.

Step-by-Step Calibration Process for All Smart Board Types

Pre-Calibration Preparation

Before starting the calibration process, proper preparation ensures better results and prevents recurring issues:

1. Clean the screen surface: Use a microfiber cloth and approved cleaning solution to remove fingerprints, dust, and smudges. Contaminants on the surface can interfere with sensor accuracy, particularly on infrared and capacitive systems.
2. Check physical connections: Verify that all USB cables, power connections, and video cables are securely attached. Loose connections can cause intermittent calibration failures.
3. Update drivers and firmware: Ensure you’re running the latest software version for your smart board model. Manufacturers regularly release updates that improve calibration algorithms.
4. Adjust room lighting: Excessive sunlight or strong overhead lights can interfere with infrared-based systems. Close blinds or adjust lighting for optimal conditions.
5. Remove obstructions: Clear the area around the board’s frame, especially near IR sensors. Objects blocking sensors can cause permanent dead zones.

Universal Calibration Method (Works for Most Smart Boards)

This method applies to the majority of smart boards from manufacturers including LeaderHub, SMART Technologies, Promethean, and other leading brands:

1. Access calibration settings: Navigate to your smart board’s control panel or settings menu. Common access methods include:
   • Press the physical calibration button on the frame (usually marked with a target icon)
   • Open the companion software and select Tools ¡ú Calibrate
   • Right-click the system tray icon and choose Calibration
   • Use the on-screen display (OSD) menu via remote control
2. Select calibration mode: Choose between quick calibration (4-9 points) for minor adjustments or precision calibration (16-25 points) for comprehensive alignment. For first-time calibration or after significant accuracy issues, always use precision mode.
3. Touch calibration points: A series of target points will appear sequentially on the screen. Using your finger or the provided stylus, touch the exact center of each target firmly and briefly. Key techniques:
   • Hold the stylus perpendicular to the screen, not at an angle
   • Apply consistent pressure at each point
   • Wait for the visual confirmation before moving to the next point
   • If you miss a target, most systems allow you to press ESC and restart
4. Complete the sequence: Follow the pattern carefully. Typical patterns move clockwise from corners, then center points, then intermediate positions. The entire process takes 1-3 minutes depending on the number of calibration points.
5. Test calibration accuracy: After completion, test touch response across all screen areas. Open a drawing application and write in different zones, or use built-in calibration verification tools that display offset measurements.

Windows-Based Smart Board Calibration

For smart boards running Windows operating systems with touch functionality:

1. Open Control Panel ¡ú Hardware and Sound ¡ú Tablet PC Settings
2. Select the Display tab and click Calibrate
3. Choose your display if using multiple monitors
4. Touch the crosshair targets as they appear using either finger or stylus
5. Click OK to save the new calibration profile
6. Repeat the process if Windows detects multiple touch input devices

For Windows 10/11 systems, you can also access calibration through Settings ¡ú Devices ¡ú Pen & Windows Ink ¡ú Calibrate. This provides additional options for pressure sensitivity adjustment on devices that support it.

Mac and Linux Calibration Approaches

macOS and Linux systems require different approaches since built-in calibration tools are limited:

• macOS: Use the manufacturer’s dedicated calibration application. Most smart board vendors provide Mac-compatible software available through their support websites. Install the driver package, then access calibration through the menu bar icon or System Preferences.
• Linux: Utilize the xinput-calibrator utility for X11-based systems or manufacturer-specific tools. For Ubuntu/Debian: sudo apt-get install xinput-calibrator, then run the calibration wizard and save the generated configuration.

Advanced Calibration Techniques for Persistent Issues

Multi-Point Precision Calibration

When standard calibration doesn’t resolve accuracy problems, advanced multi-point calibration provides superior precision by mapping more reference points across the display surface:

1. Access advanced settings in your smart board software (often requires administrator privileges)
2. Select “Extended Calibration” or “Professional Mode”
3. Complete a 25-point or higher calibration grid
4. Perform edge calibration by touching targets at extreme screen boundaries
5. Enable corner optimization if your software supports it

Based on technical support data from enterprise deployments, extended calibration resolves accuracy issues in approximately 92% of cases where standard calibration fails, making it the preferred method for critical applications in healthcare, finance, and design industries.

Sensor Cleaning and Hardware Checks

Sometimes calibration issues stem from hardware problems rather than software alignment. For infrared smart boards:

• Inspect the frame-mounted IR emitters and receivers for dust accumulation
• Use compressed air to gently clean sensor arrays (never touch sensors directly)
• Check for physical damage to the sensor housing or protective covers
• Verify that no objects are permanently obstructing the IR grid
• Test individual sensors using diagnostic mode if available

For capacitive and resistive touch panels, examine the screen surface for physical damage, delamination, or moisture infiltration that might affect touch detection. Professional IT administrators report that 15-20% of calibration issues are actually hardware-related and require component replacement or professional service.

Software Conflicts and Driver Management

Conflicting input device drivers can cause calibration failures. To resolve software conflicts:

1. Open Device Manager (Windows) or System Information (Mac)
2. Locate “Human Interface Devices” or “Input Devices”
3. Disable or uninstall competing touch device drivers
4. Reinstall your smart board’s manufacturer driver package
5. Restart the computer and perform calibration immediately after reboot
6. Create a system restore point before making driver changes

Troubleshooting Common Calibration Problems

Calibration Doesn’t Save or Resets After Restart

If your calibration settings don’t persist between sessions:

• Verify user account permissions (calibration may require administrator rights)
• Check if the operating system has write permissions to the calibration profile directory
• Disable any system restore or deep freeze software that might revert settings
• Update the smart board firmware¡ªolder versions have known persistence bugs
• Create a startup script that loads calibration settings automatically

One Corner or Edge Remains Inaccurate

Localized accuracy problems indicate specific issues:

• Physical obstruction: Check for mounting hardware, speakers, or other objects blocking sensors in that area
• Damaged sensors: IR emitters or receivers in that corner may be malfunctioning
• Screen deformation: Mounting pressure or warping can affect capacitive layers
• Cable interference: Power or data cables running along the frame can interfere with IR beams

Perform zone-specific calibration if your software supports it, or contact the manufacturer for targeted diagnostics and potential sensor replacement.

Touch Works but Writing Is Inaccurate

This specific issue often relates to pen pressure sensitivity or palm rejection settings rather than core calibration:

1. Access pen settings in your smart board software
2. Adjust pressure sensitivity curves for your writing style
3. Enable or fine-tune palm rejection algorithms
4. Calibrate the specific stylus you’re using (some systems require per-pen calibration)
5. Test with different pen tips or replace worn tips that affect pressure detection

Maintaining Calibration Accuracy Long-Term

Scheduled Maintenance Best Practices

Professional AV technicians and educational IT departments follow structured maintenance schedules to prevent calibration drift:

Environmental Controls

Creating optimal environmental conditions extends calibration stability:

• Maintain consistent room temperature between 15-25¡ãC (59-77¡ãF)
• Keep relative humidity between 30-60% to prevent moisture-related issues
• Install UV-filtering window treatments to prevent direct sunlight interference
• Use anti-static mats near the board to reduce electrostatic discharge
• Position HVAC vents to avoid direct airflow onto the screen surface

User Training and Documentation

Many calibration issues arise from improper usage. Implement user training that covers:

1. Correct touch technique (perpendicular contact, consistent pressure)
2. Proper pen/stylus handling and storage
3. Screen cleaning procedures using approved materials
4. When to report accuracy issues rather than continuing to use a miscalibrated board
5. Basic troubleshooting steps before contacting IT support

In educational environments, schools that implemented formal smart board usage training reported 47% fewer calibration-related support tickets and significantly longer intervals between required maintenance.

Professional-Grade Smart Boards with Advanced Calibration

Modern smart boards incorporate sophisticated auto-calibration features that reduce maintenance burden and improve long-term accuracy. LeaderHub, with over 16 years of experience developing interactive display technologies, integrates AI-powered calibration systems that automatically adjust for environmental changes and usage patterns.

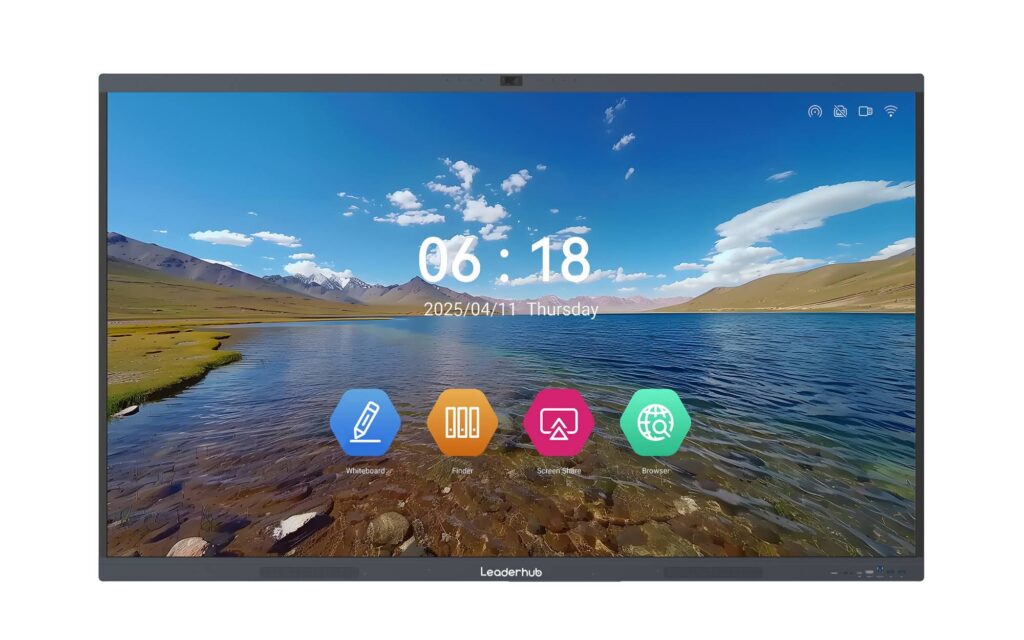

LeaderHub’s interactive flat panels feature:

• Self-calibrating IR sensor arrays that compensate for ambient light changes
• Machine learning algorithms that adapt to individual user touch patterns
• Remote calibration capabilities for IT administrators managing multiple displays
• Diagnostic tools that identify sensor failures before they affect user experience
• Cloud-based calibration profile backup and restoration

Deployed in over 82 countries across education, corporate, and government sectors, LeaderHub’s smart boards demonstrate exceptional calibration stability, with average recalibration intervals 60% longer than industry standards. This reliability translates to reduced IT overhead and more productive classroom and meeting room experiences.

Calibration for Specialized Applications

Design and Creative Work

Professional designers and architects require exceptional calibration precision for CAD work, digital illustration, and technical drawing:

• Use stylus-specific calibration rather than finger-based calibration
• Enable sub-pixel accuracy modes if supported by your hardware
• Calibrate at your typical working distance and angle
• Create separate calibration profiles for different users sharing the board
• Integrate with graphics tablets that provide additional pressure and tilt data

Medical and Healthcare Settings

Clinical environments demand reliable touch accuracy for electronic health records and medical imaging:

• Perform calibration during off-hours to avoid workflow disruption
• Use antimicrobial cleaning protocols that don’t damage touch surfaces
• Document calibration dates as part of medical equipment maintenance logs
• Implement failover procedures when calibration issues occur during critical operations
• Consider antimicrobial coated screens that resist degradation from frequent sanitization

Retail and Public Kiosks

High-traffic public installations face unique calibration challenges:

• Schedule automatic recalibration during closed hours
• Use tempered glass overlays that protect touch sensors from abuse
• Implement usage monitoring to track calibration drift patterns
• Deploy remote management systems for centralized calibration control
• Plan for more frequent professional service intervals (every 3-6 months)

Future of Smart Board Calibration Technology

The interactive display industry is evolving toward calibration-free systems that eliminate manual alignment entirely. Emerging technologies include:

• Continuous auto-calibration: Systems that constantly monitor and adjust alignment in real-time using AI algorithms
• Computer vision integration: Cameras that track hand and stylus positions to verify and correct calibration automatically
• Predictive maintenance: IoT-enabled boards that alert administrators before calibration issues become noticeable
• User-specific calibration profiles: Systems that recognize individual users and load personalized calibration settings
• Quantum dot displays: Next-generation screens with integrated touch layers that inherently maintain better calibration stability

Industry analysts project that by 2027, over 75% of new interactive displays will feature autonomous calibration systems that require minimal human intervention, significantly reducing the technical expertise needed for deployment and maintenance.

Key Takeaways for Successful Smart Board Calibration

Maintaining accurate touch response on smart boards requires a combination of proper technique, regular maintenance, and understanding the underlying technology. Remember these essential points:

• Calibrate immediately after installation and whenever accuracy noticeably declines
• Clean the screen surface before calibration to ensure optimal sensor performance
• Use precision multi-point calibration for critical applications requiring high accuracy
• Implement scheduled maintenance rather than waiting for user complaints
• Document calibration procedures and schedules for institutional environments
• Train users on proper touch techniques to minimize accuracy degradation
• Consider environmental factors like lighting and temperature that affect sensor performance
• Keep firmware and drivers updated to benefit from manufacturer calibration improvements

Whether you’re managing a single smart board in a small meeting room or hundreds of interactive displays across a school district, systematic calibration practices ensure consistent performance and user satisfaction. By following the comprehensive procedures outlined in this guide, you can maintain professional-grade touch accuracy and maximize the return on your interactive display investment.
