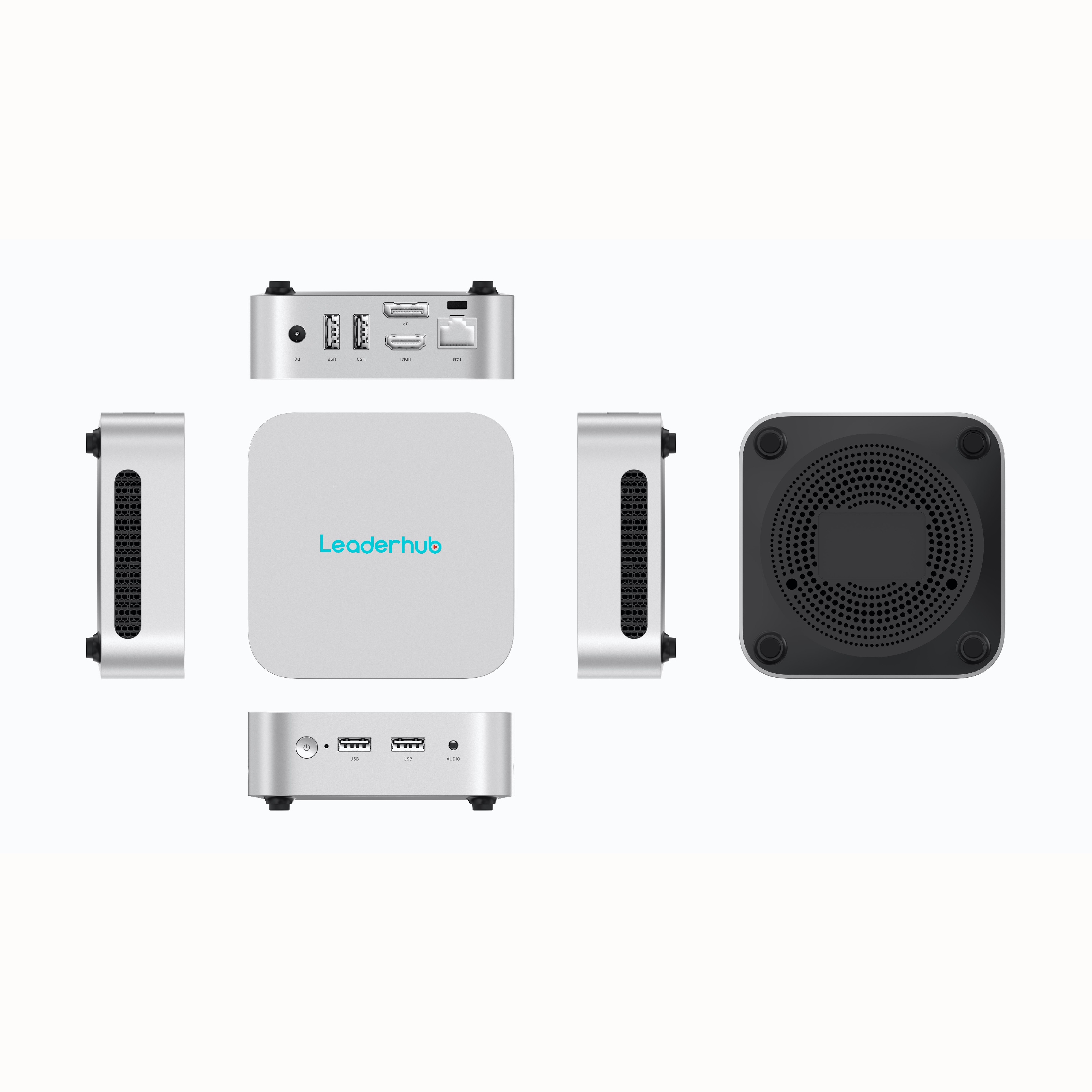

Product Appearance | |||
| Type C | Spec. | Standard Configuration | Optional |
| Product | Name | MINI PC | |
| Product Type | Apple Style : Top cover silver color spraying + bottom cover black color spraying + button spraying ; | ||
| Dimension | 99.9*99.9*33mm | ||
| Case Material | PC+ABS | ||
| Weight | / | ||
| System Hardware Configuration | |||
| Type C | Spec. | Standard Configuration | Optional |
| CPU | Model | Alder Lake-N N100 | |
| Manufacturing process | Intel 7 | ||
| Cores | 4 Cores/4 Threads | ||
| Smart Cache | 6M | ||
| Max. Turbo Speed | 3.4Ghz | ||
| Power Consumption | 6W | ||
| GPU | Model | Intel® UHD Graphics | |
| Cores | / | ||
| Speed | 750 MHz | ||
| Resolution | / | ||
| Memory | Model | SO-DIMM DDR4 *1 | |
| Speed | DDR4 2666 MT/s | ||
| Capacity | 8GB （DDR4 SODIMM 2666MHz） Up to 16GB | ||
| Storage | SSD Capacity | Sata*1 512G ，SSD(Up to 2TB) | Split disk, system disk 200GB |
| SSD Type Interface | M.2 2280 SATA&PCIE *1 | ||
| 2.5 ”SSD | NA | ||
| TF Card | NA | ||
| RTC | BIOS | Real-time Clock, Time Boot | |
| Auto Power On | BIOS | Support auto power on after electrified | |
| Diskless Network | BIOS | Support uefi/Legacy Diskless Switch On | |
| TPM | CPU integratesTPM | / | |
| Triple Display | Video Output | HDMI*1+DP*1 | |
| LED | State | Power on white light, standby red light, power off light off | |
| Internet Connection | |||
| Type C | Spec. | Standard Configuration | Optional |
| WIFI | Model | on board | |
| Protocol | IEEE 802.11 a, b/g, n, ac，ax (wifi5/6) | ||
| Bluetooth | Model | onbord | |
| Protocol | Support Bluetooth 4.2/5.2 | ||
| 3G | Built-in | NA | |
| 4G | Built-in | NA | |
| Ethernet | LAN1 | 10M/100M/1000M Self-adaption | |
| Internet Connection | |||
| Type C | Spec. | Standard Configuration | Optional |
| USB2.0 | USB2.0 Type-A | USB2.0 Type-A*2 480Mbps | |
| USB2.0 extend | NA | ||
| USB3.0 | USB3.0 | USB3.0 Type-A*2 5Gpbs | |
| USB3.0 extend | NA | ||
| TF | Expansion Memory | NA | |
| HDMI | AV Output | HDMI 2.0 4096 x 2160@60Hz *1 | |
| DP | 4K AV output | DP 1.4 4096 x 2160@60Hz *1 | |
| VGA | video output | NA | |
| COM | serial port | NA | |
| RJ45 | Gigabit Ethernet | 10/100/1000M*1 | |
| LVDS | screen port | NA | |
| Backlight Voltage | NA | ||
| Type C | Data Transmission | NA | |
| panel switch | Power button | *1 | |
| DC IN | Power output | DC Jack x1 5.5/2.1mm | |
| Power Input | / | ||
| Audio-in/out | audio output | / | |
| output Input | / | ||
| Audio Input and Output | 3.5mm Phone Jackx1 | ||
| speaker output | / | ||
| UART serial port | serial output | / | |
| serial output | / | ||
| Antenna | FPC Antenna 1 | WiFi 2.4+5G+BT *1 | |
| FPC Antenna 2 | WIFI 5.0 | ||
| SIM | micro SIM | No | |
| Software Configuration | |||
| Type C | Spec. | Standard Configuration | Optional |
| OS | Version | Windows 11 Pro | |
| Environment | |||
| Type C | Spec. | Standard Configuration | Optional |
| Environment | Working Temperature | 0~45℃ | |
| Memory Temperature | -20~70℃ | ||
| Humidity | 5%-95% @ 40 °C (No Condensation) | ||
| ΔT | MAX: 23 °C | ||
| Accessory | |||
| Type C | Spec. | Standard Configuration | Optional |
| Power Supply | Vesa | Input 100~240V 50/60Hz Output12V/2.5A DC 5.5*2.1mm | |

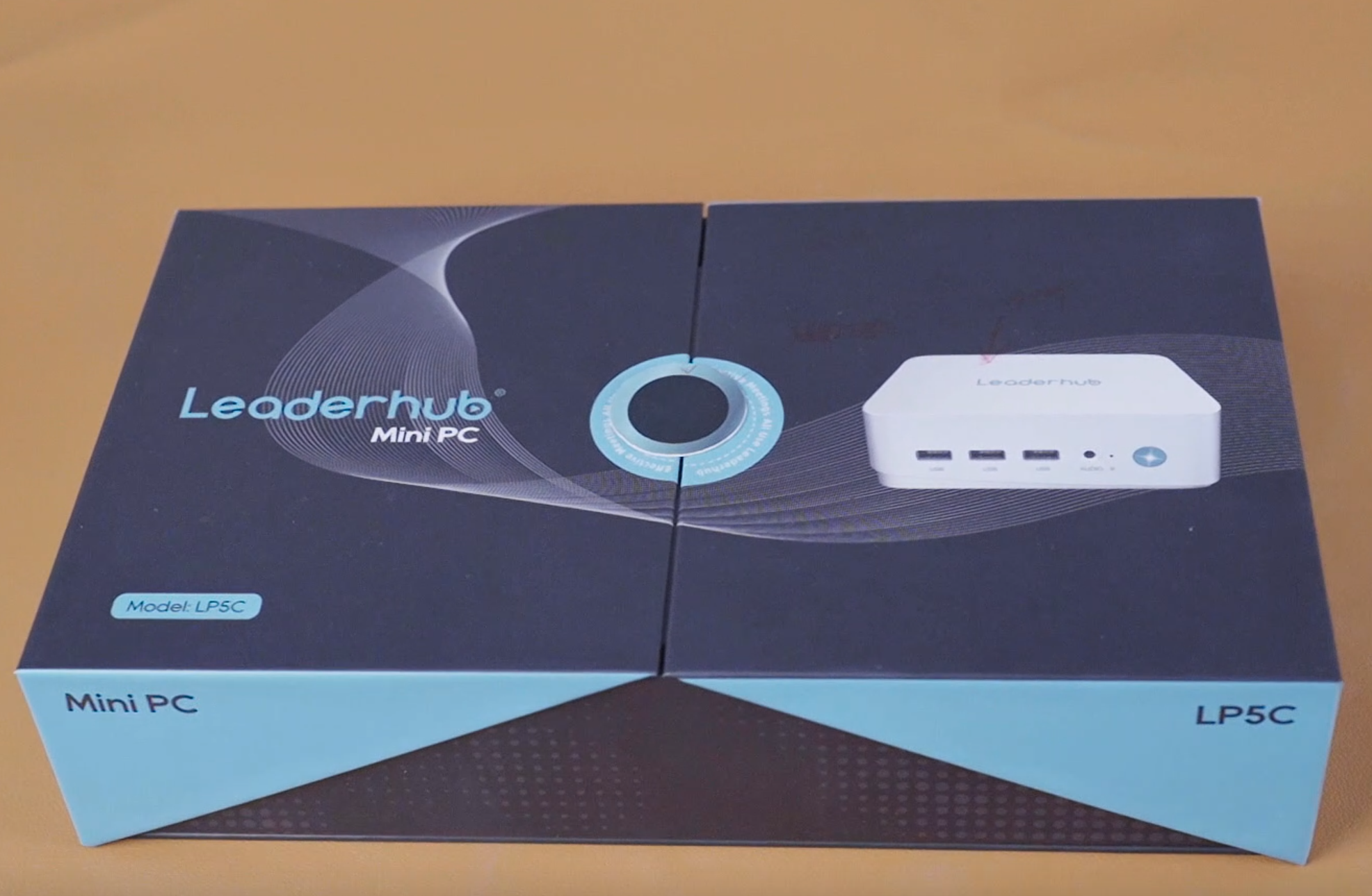

2025 leaderhub new product LP5C MINI PC
$399.00
